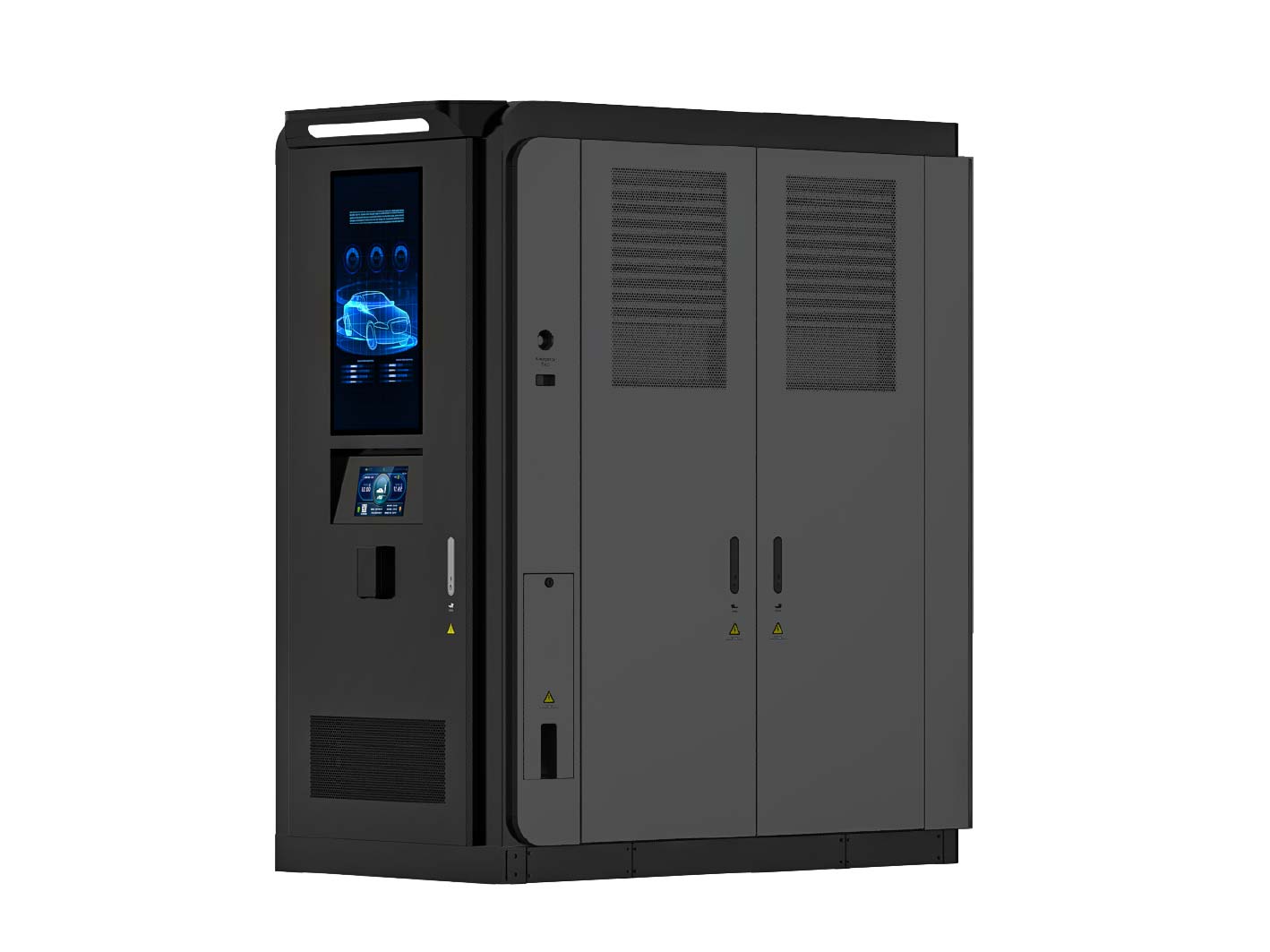

Leading DC fast-charging technology
Home >
Product>Boost Charger>Boost Charger

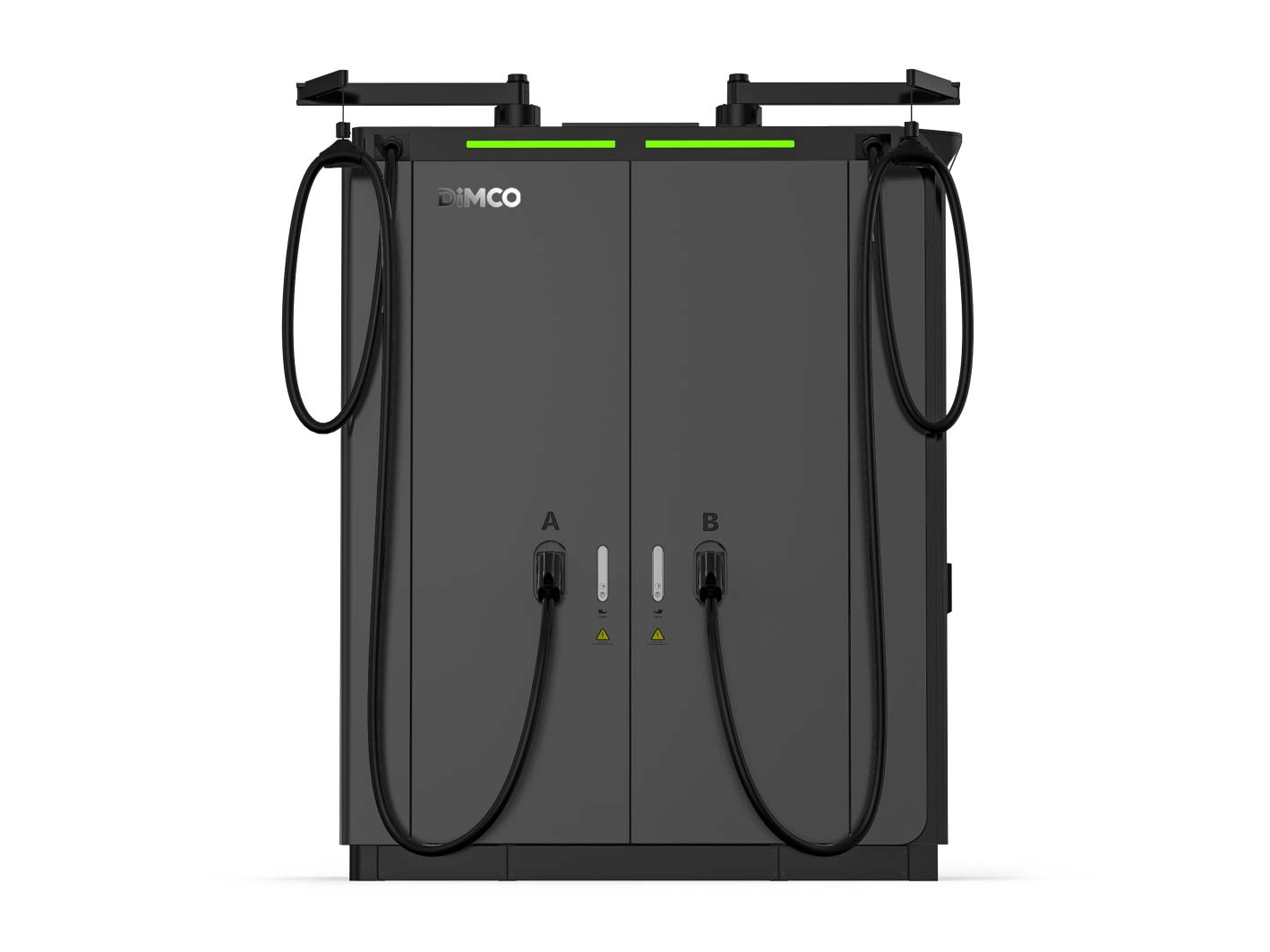

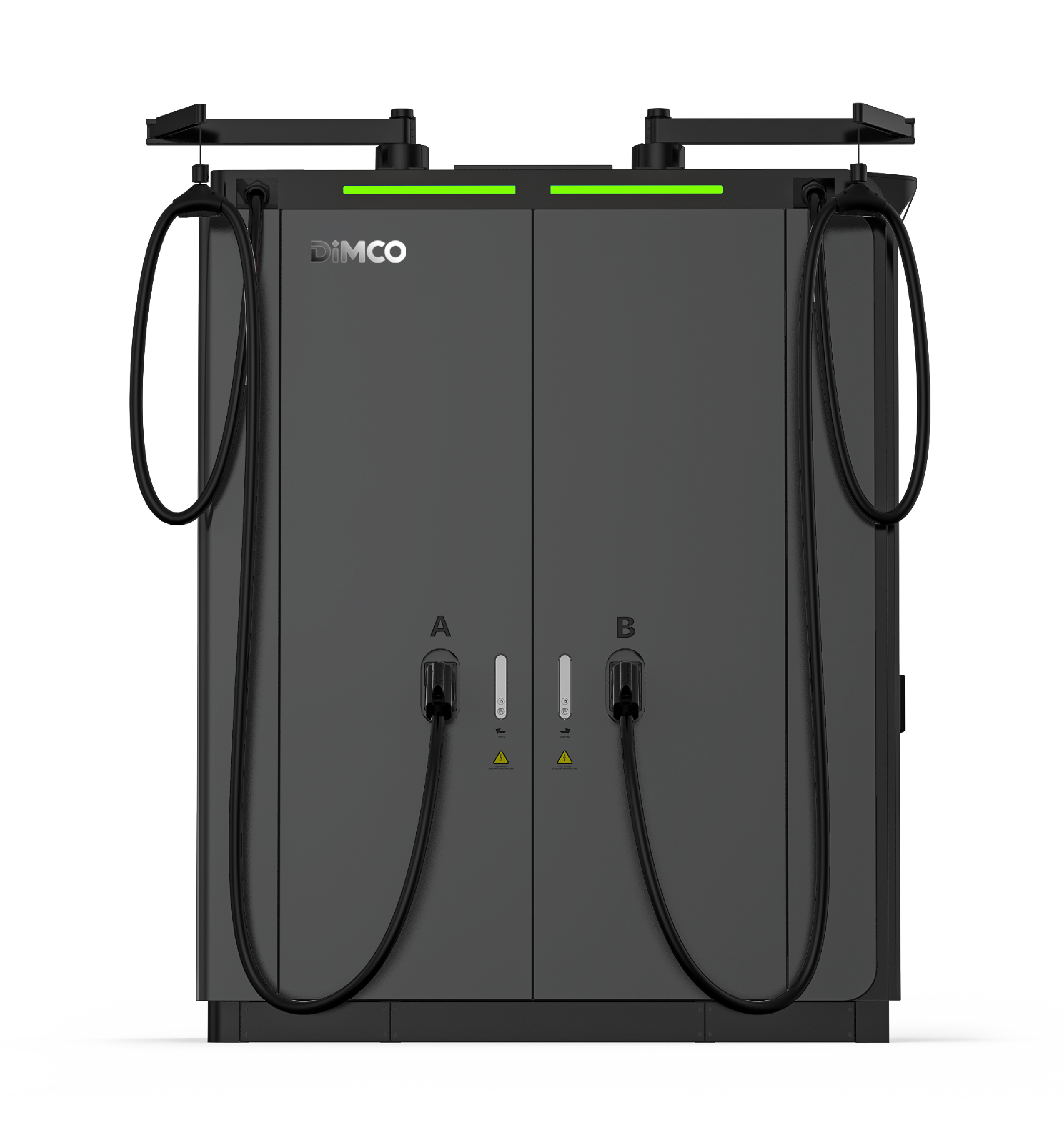

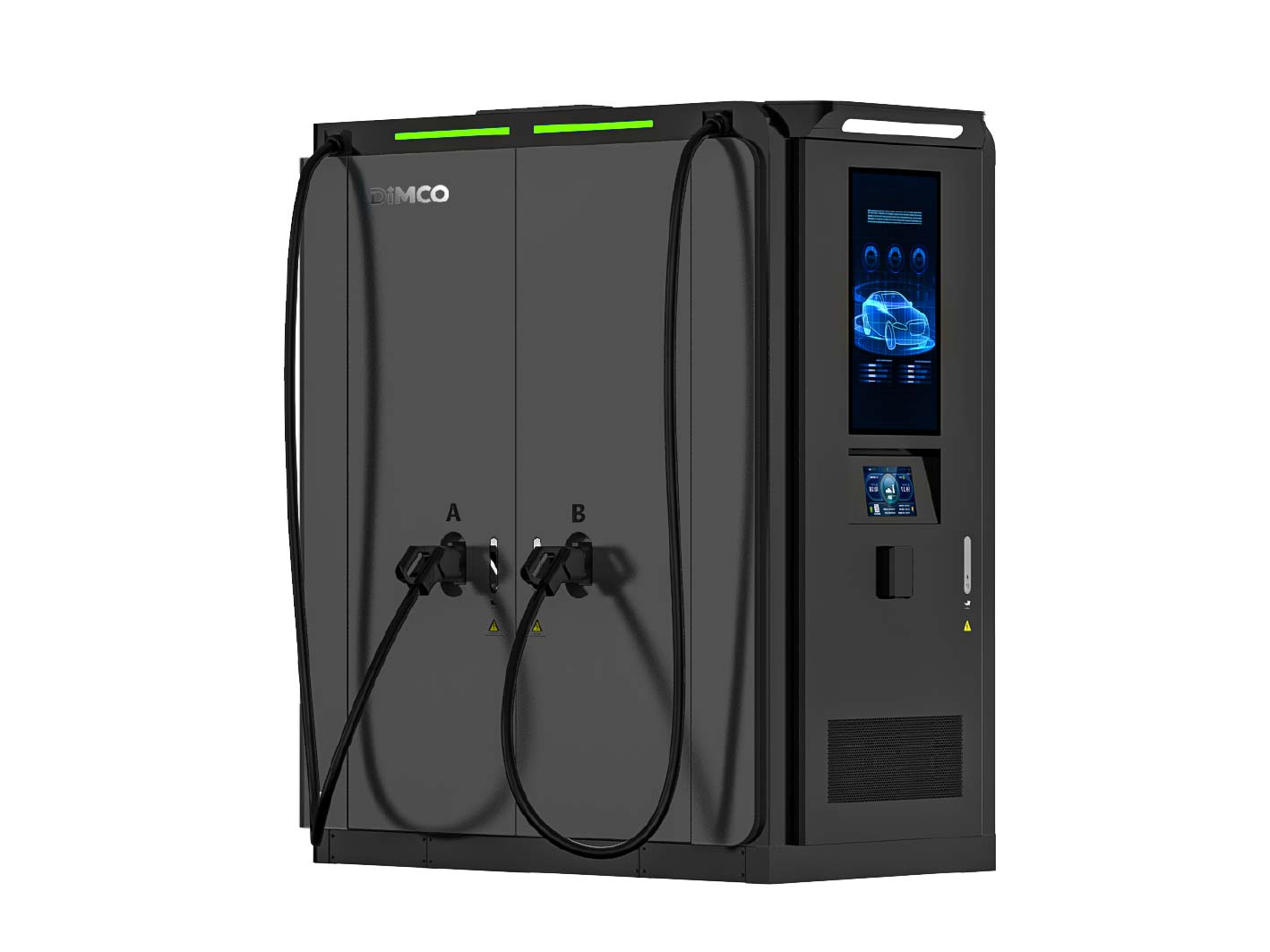

Max. output power 240kw for dual charging connectors
172kWh built-in battery with 1C high-power performance
Virtual capacity boost on the condition of limited grid supply
Optional Battery-to-Grid for revenue increases
Renewable energy compatible by DC power coupling

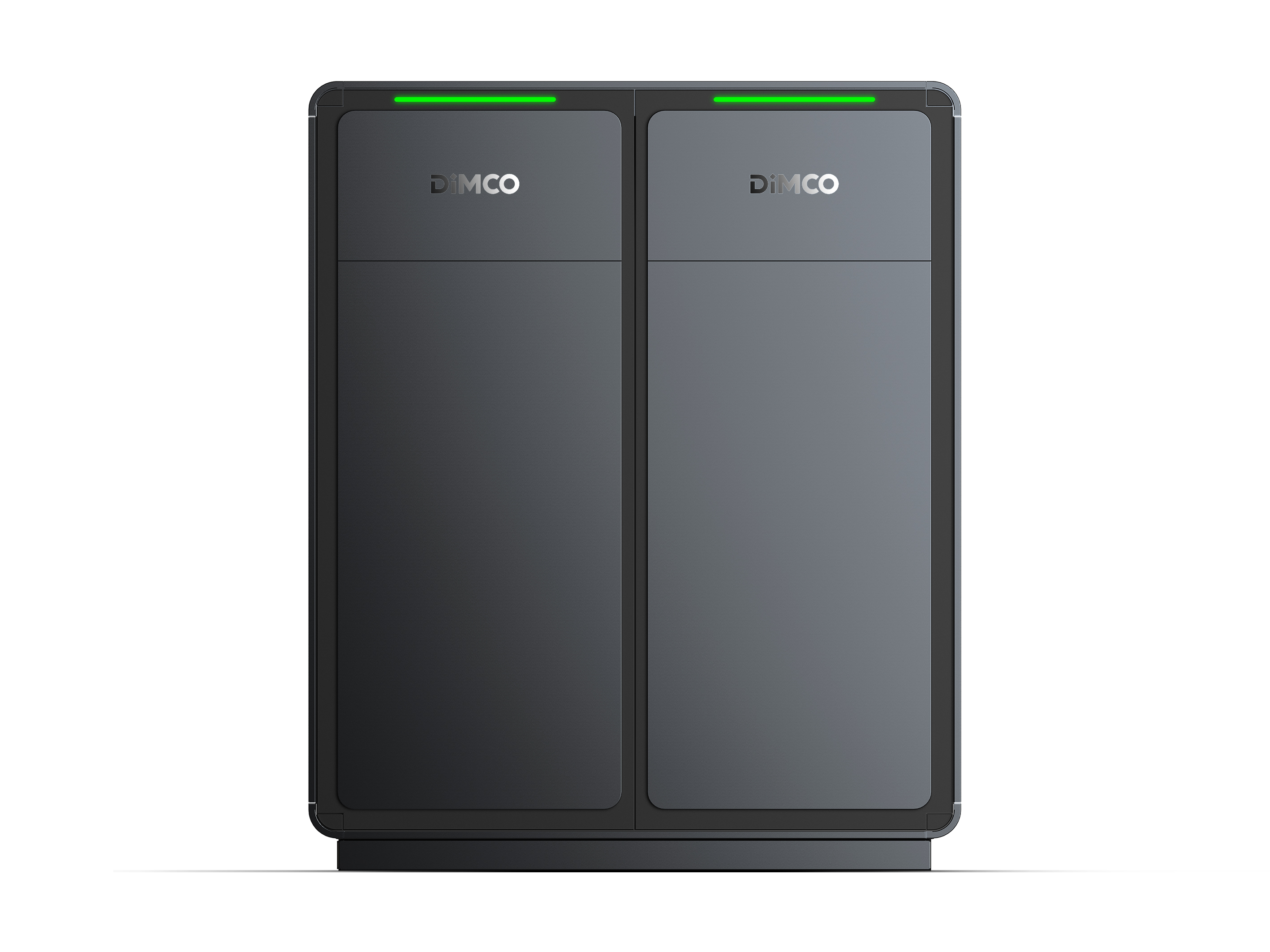

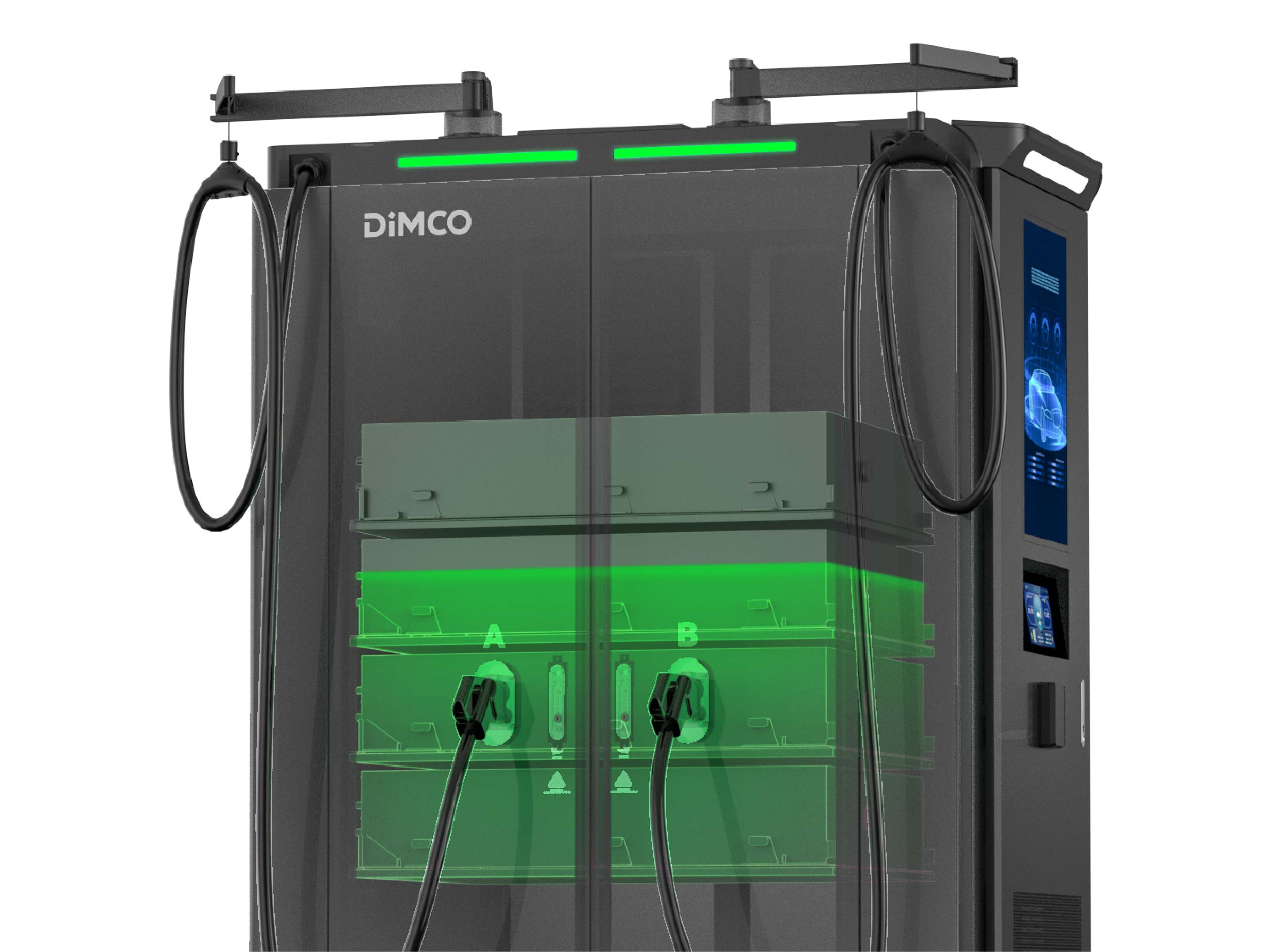

Integrated energy storage helps unlock additional charging capacity without costly grid upgrades or transformer replacements. It also provides backup power during outages, ensuring higher charging availability and operational resilience. Ideal for locations where grid capacity is limited or future demand is expected to grow.
Advanced multi-surface liquid cooling ensures efficient thermal management during continuous high-power operation. By maintaining stable battery temperatures, it enhances safety, supports consistent charging performance, and extends battery lifespan beyond 6,000 cycles. The result is greater reliability, lower maintenance requirements, and stronger long-term asset value.

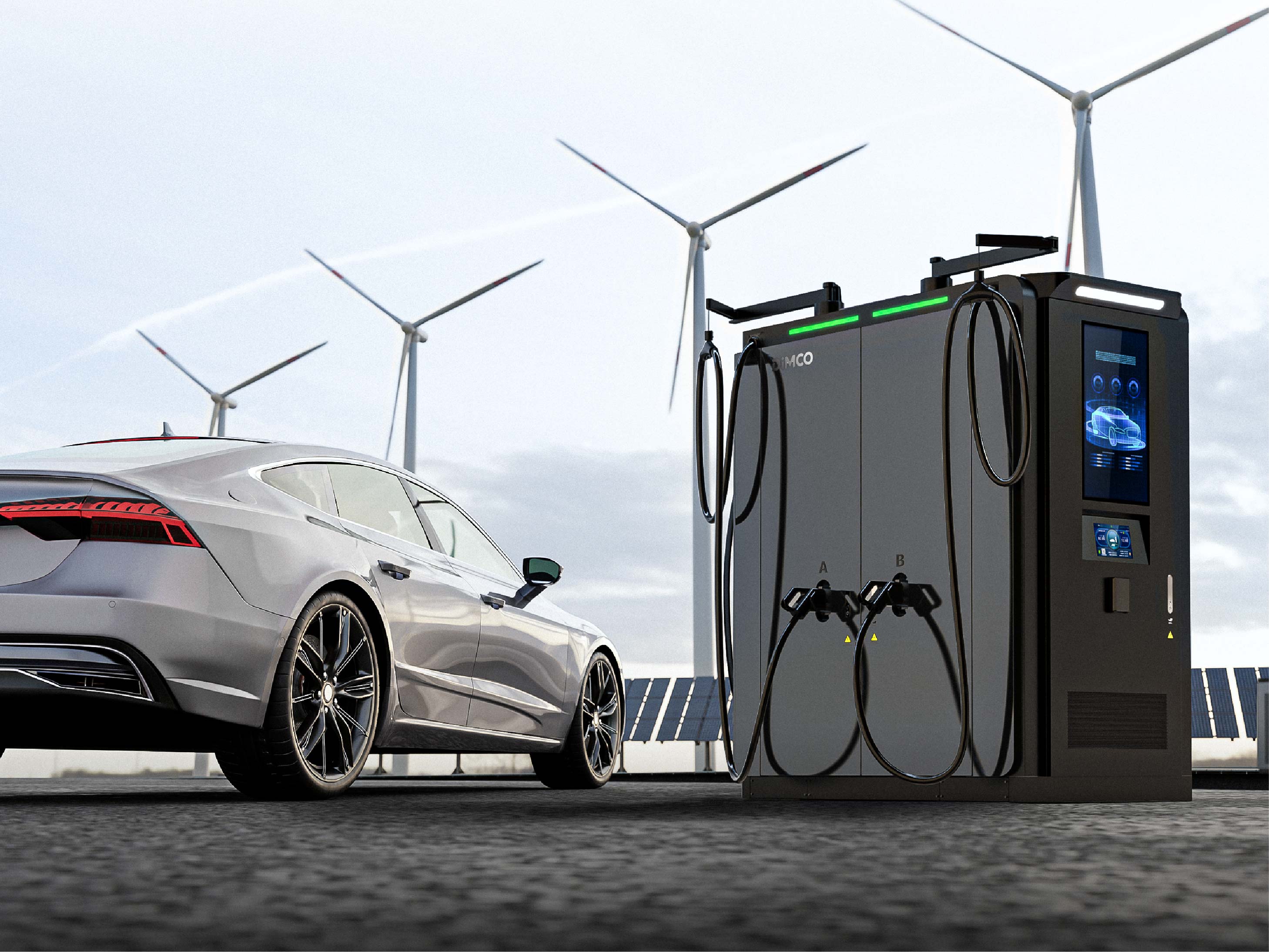

Supporting both AC and DC power inputs, the system integrates easily with solar, wind, energy storage, and existing charging infrastructure. This flexibility helps maximize renewable energy utilization, reduce grid dependency, and accelerate charging deployment in a more sustainable and cost-effective way.

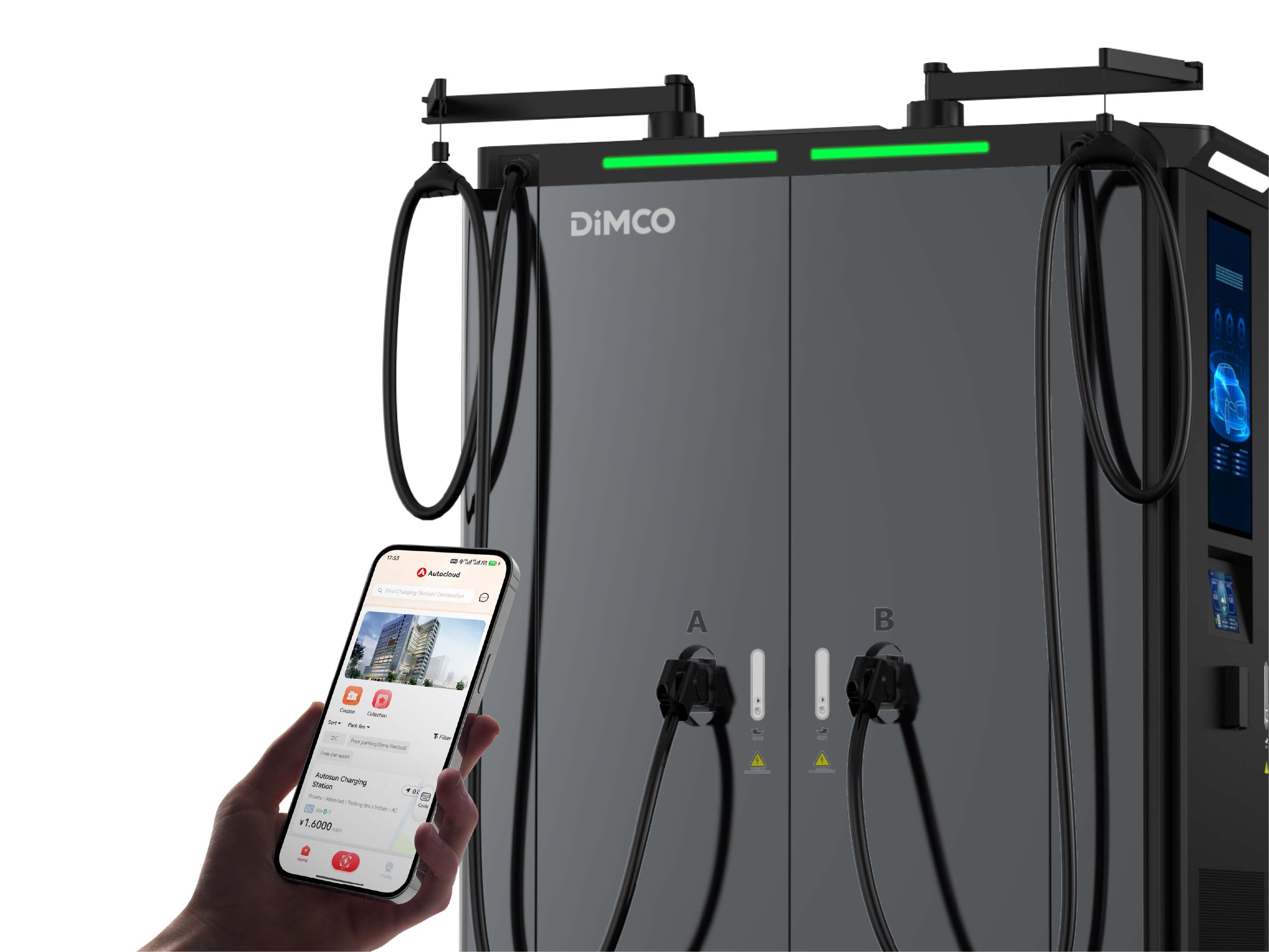

The system creates value beyond EV charging through intelligent energy management. By storing energy during off-peak periods and using it during peak demand, it helps reduce electricity costs and improve site profitability. Additional opportunities, such as grid services and digital advertising, can further enhance long-term revenue potential.
system specifications
Maximum output power up to 240kW
Charging interfaces 2*CCS2
Granularity of output power 40kW
Output DC voltage range 150Vdc - 1000Vdc
Maximum DC current 250A
AC nominal voltage 400 V ± 10%, 3P+N+PE
Maximum input currents 125A
Frequency 50Hz/60Hz
Power facctor ≥ 0.98 (50% < Po / Pn ≤ 100%)
Rated battery capacity up to 172kWh
Battery cooling Liquid cooling
Operating temperature -30℃ up to +55℃ (with derating above +50℃)
Altitude up to 2000m
Storage temperature -40℃ up to +70℃ (with derating above +50℃)
Humidity (in operation, storage) 10% - 95% relative (non-condensing)
Installation Indoor and outdoor
Type of installation Floor mounted on foundation or skid
Height x Width x Depth 2100 x 1630 x 1030 mm
Weight 2,400 kg
User interface 10” touch screen & 32'' touchscreen advertising display
Remote management Diagnostics, software updates
Network connections 4G / ETH
Network communications protocol Open Charge Point Protocol (OCPP) 1.6 J, ready for 2.0.1
Number of charging modules 2*AC/DC modules + 4*DC/DC modules
User interface 10” touch screen & 32'' touchscreen advertising display
Branding Options for custom colours (powder coating), foil application and stickers
Cable Management System Suitable for 5m Cable lengths
Payment system Pos Machine: Nayax, Payter, Pax
Options for EC/RFID Card Readers and QR-Code-Reader
Eichrecht DC meter in accordance with the German
Calibration Law (Implementation date TBC)
