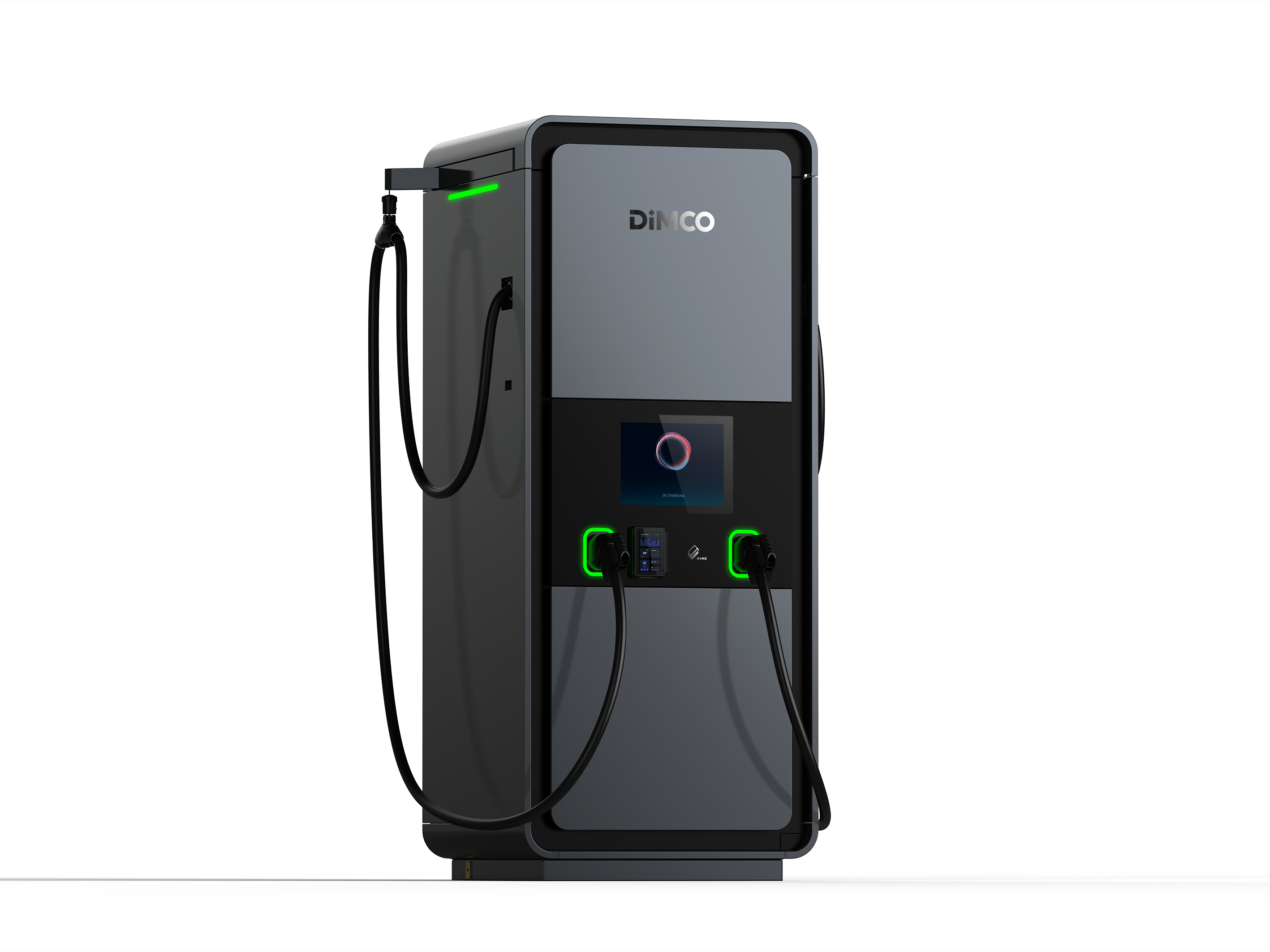

Up to 200kW output
97% high efficiency power modules
150Vdc- 1000Vdc output range
Up to 2x CCS2 connectors
50kW granularity for dynamic load management
Three flexible current ratings: 250A, 400A, or 600A
Integrated cable management system
15.1” touch screen
IP 55 protection level

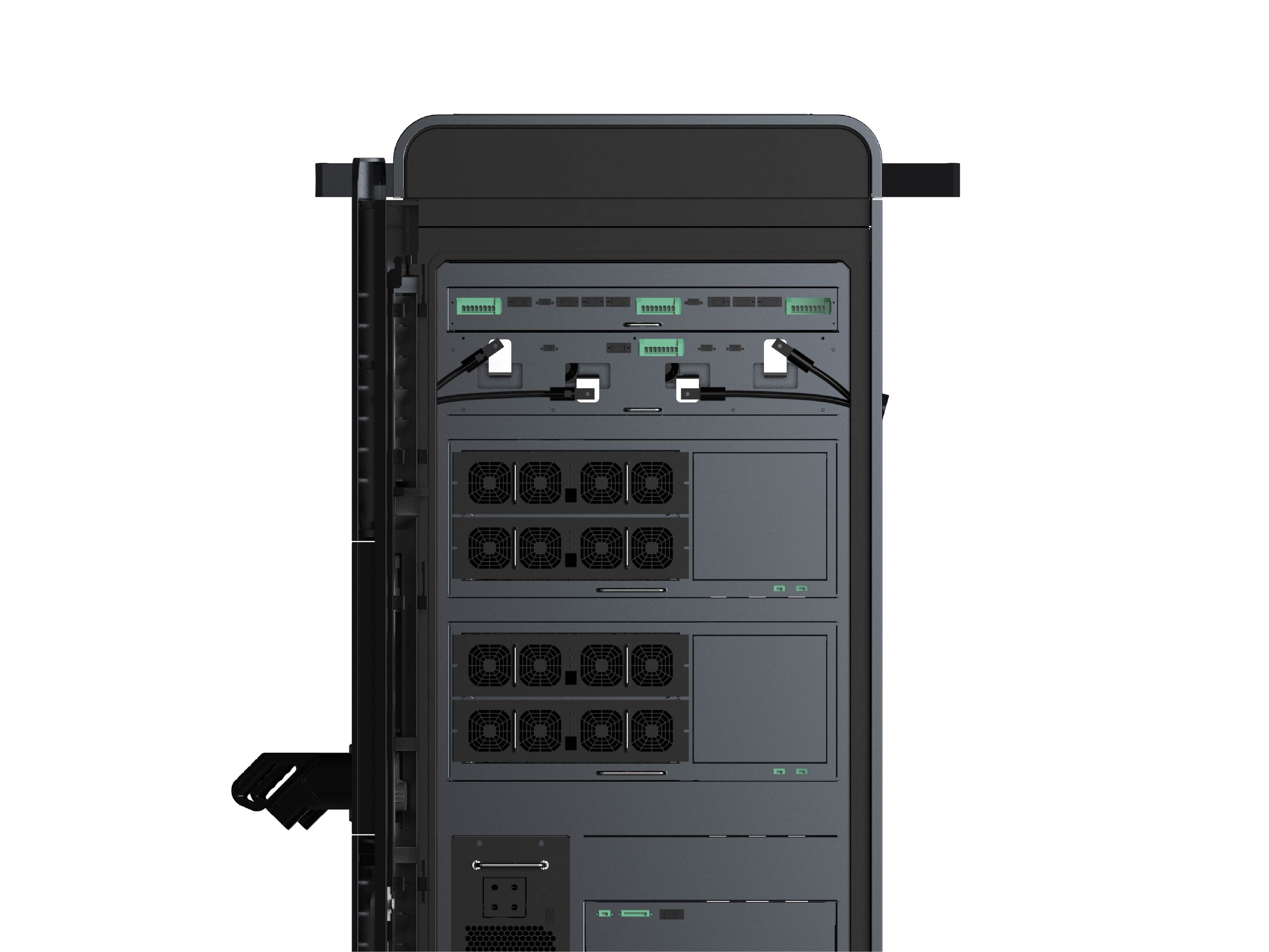

Modular architecture enables plug-and-play deployment, reducing installation complexity and enabling fast rollout. Faults are identified at component level for quick, targeted maintenance. Certified modules can be reused across sites, lowering lifecycle costs. The system supports seamless upgrades via simple module replacement, ensuring long-term scalability and future-ready performance.

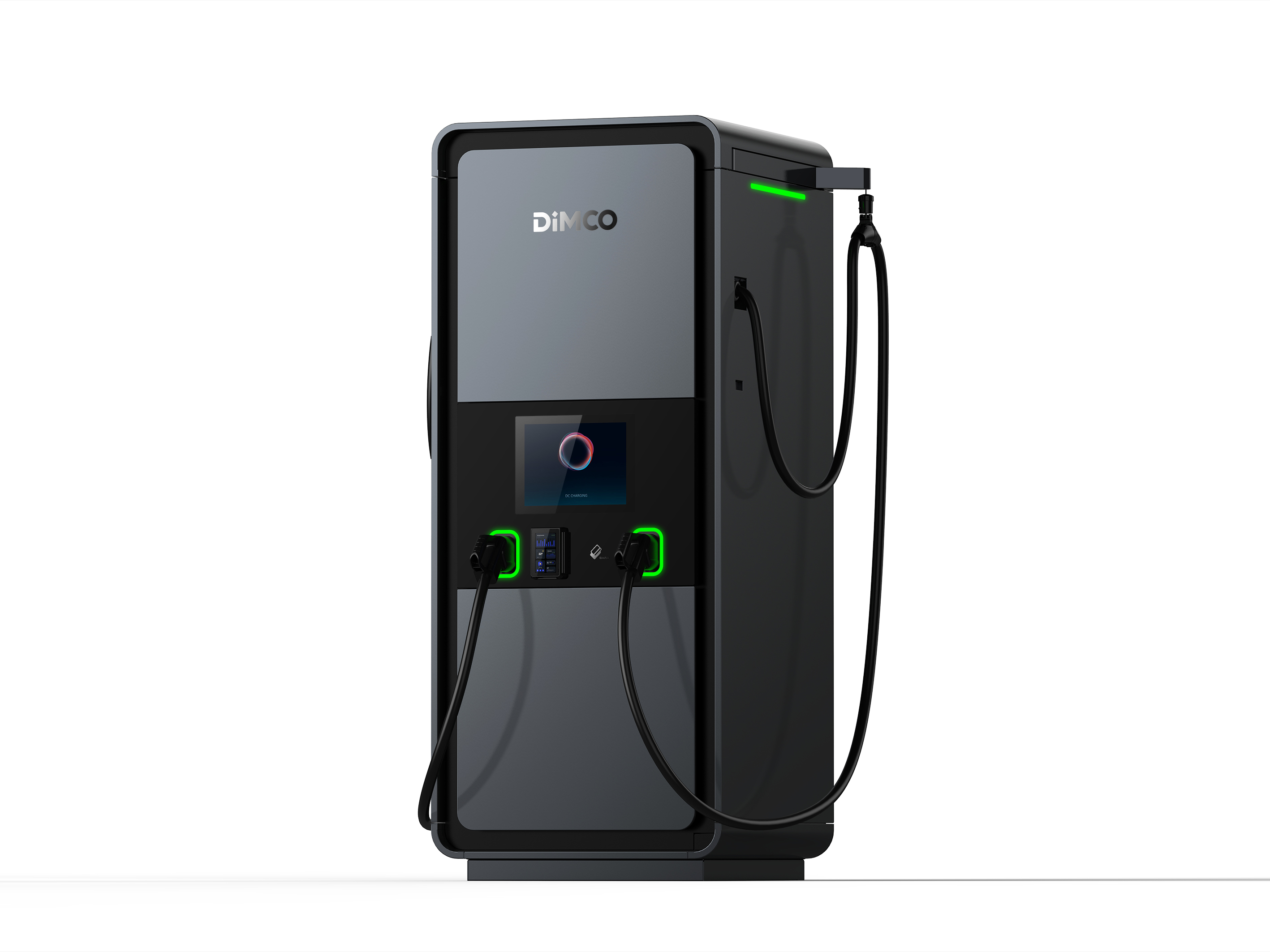

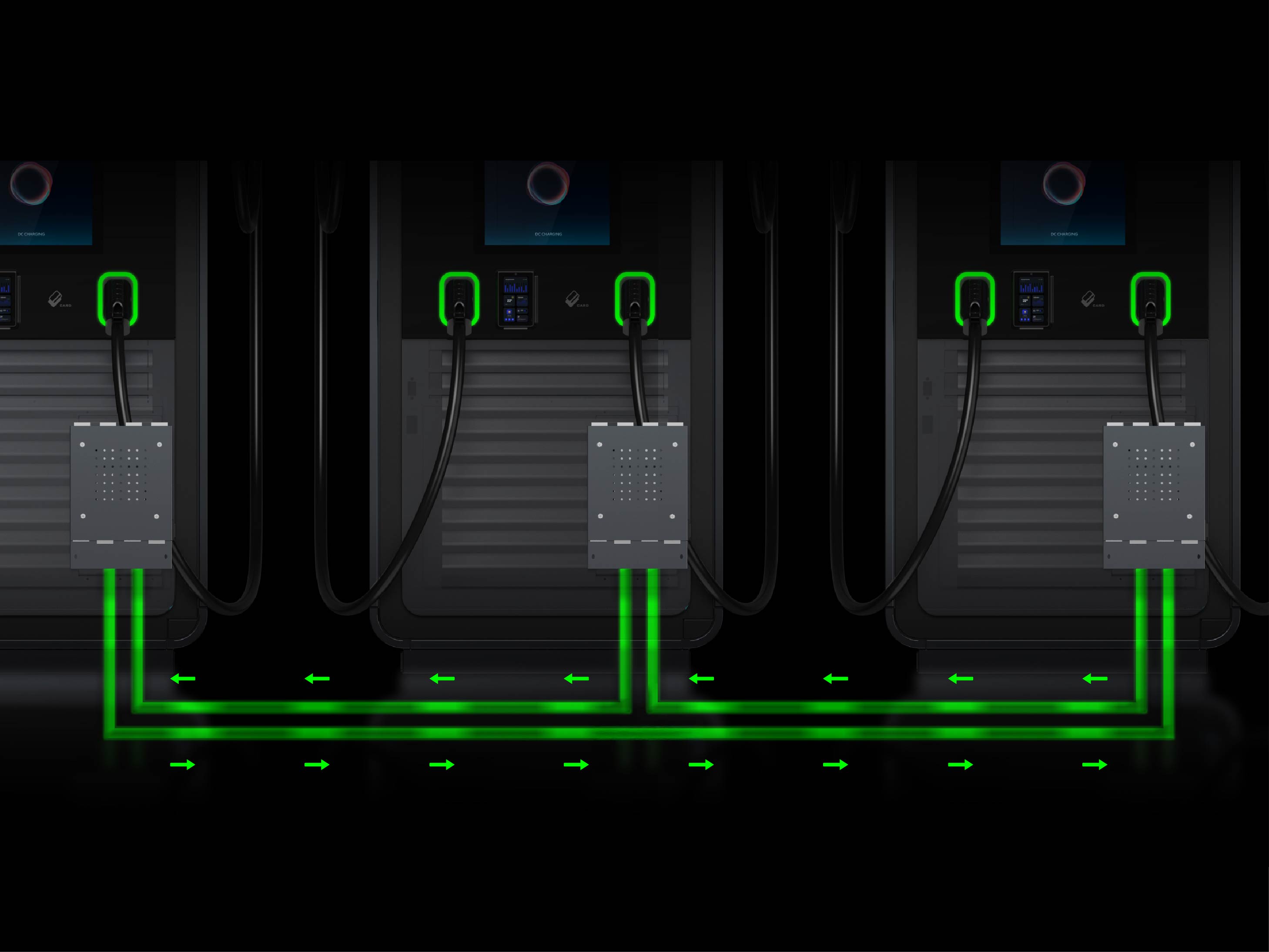

Supporting a wide 150V–1000V voltage range, this compact all-in-one charger delivers efficient fast charging for passenger EVs and commercial vehicles. Intelligent dynamic power allocation maximizes energy utilization, while the integrated design simplifies deployment, reduces site complexity, and lowers installation costs.

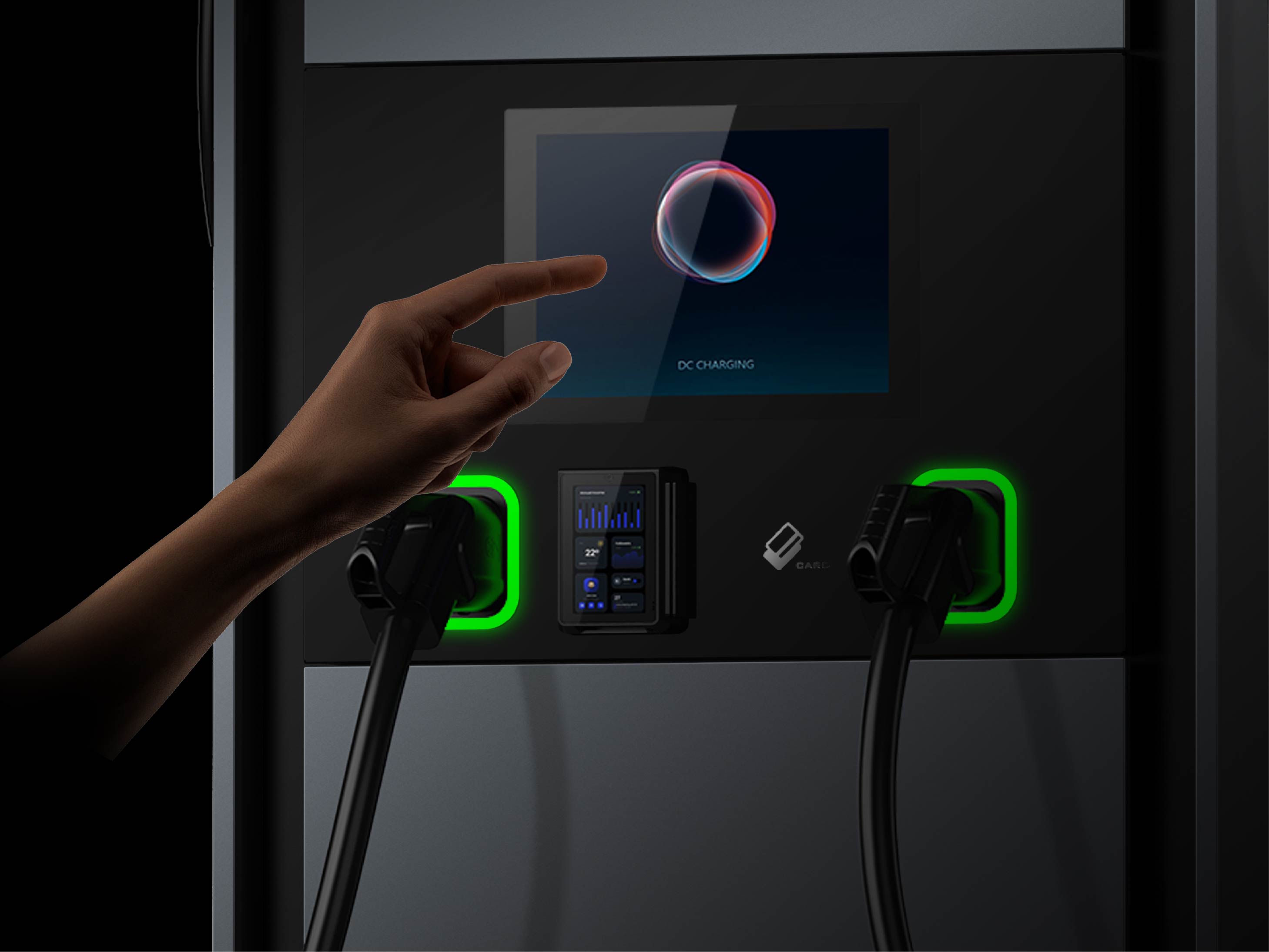

The system delivers a more intuitive and stress-free charging experience for both users and service teams. Smart cable management keeps operations smooth while improving durability and maintaining a clean appearance. A bright 10.1-inch touchscreen ensures simple interaction in any lighting condition. Clear LED indicators and a visible status light bar make charging status easy to understand at a glance. Built-in lighting, along with a service laptop shelf and power outlet, further supports safer and more efficient on-site maintenance.

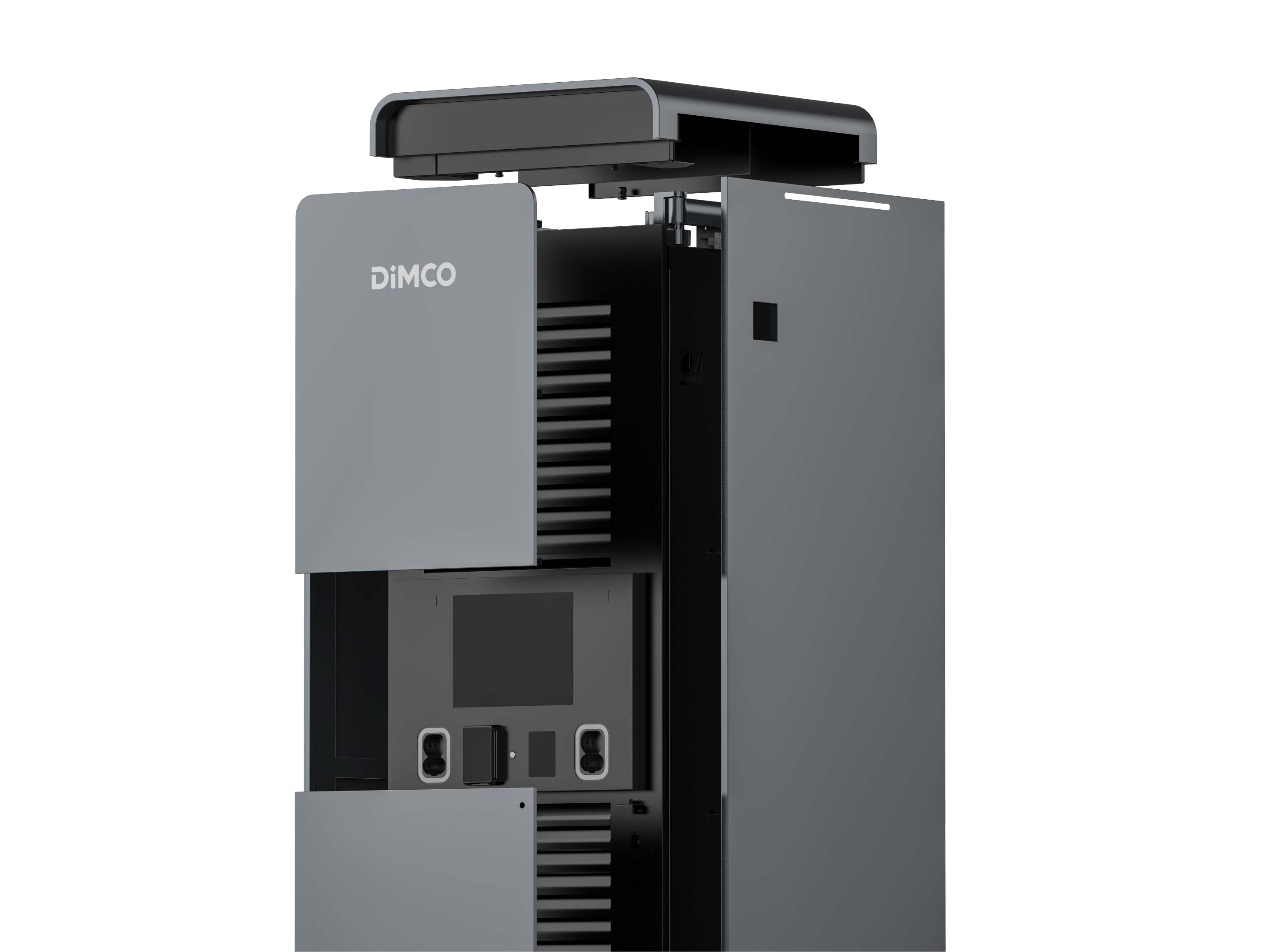

A smart design that keeps the charging system inside standard and reliable, while allowing the enclosure to be customized with different panels. This enables a distinct visual identity beyond simple logo or color changes found in traditional OEM products. It also makes the charging equipment fit better into urban environments, whether in streets, car parks, or public spaces more naturally, so it feels like part of the urban environment rather than industrial equipment.

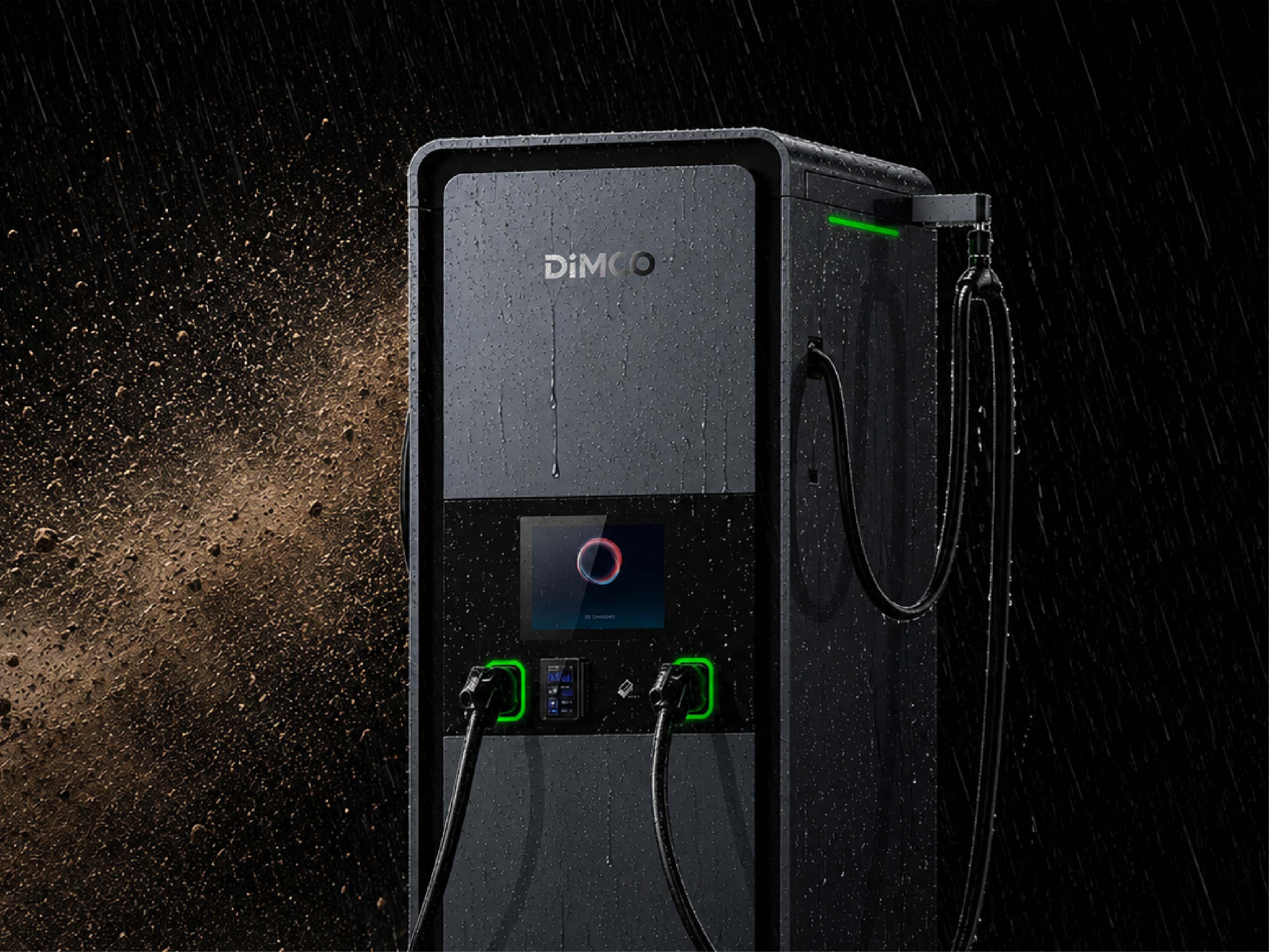

Designed for long-term reliability, the system combines comprehensive safety protection with robust environmental resistance. Built to withstand harsh weather, dust, humidity, and corrosive conditions, it helps reduce downtime, extend equipment lifespan, and ensure stable charging operations in demanding environments.
system specifications
Maximum output power 200kW
Charging interfaces 2*CCS2
Granularity of output power 50kW
Output DC voltage range 150Vdc - 1000Vdc
Maximum DC current 600A liquid cooled(prepared for 750A boost)
400A uncooled(prepared for 600A boost)
250A uncooled(prepared for 400A boost)
AC nominal voltage 400V±10%,3P+N+PE
AC rated input current 1*307A
Frequency 50Hz/60Hz
Power facctor ＞0.99(@full load)
Efficiency up to 96.5%(@full load)
Operating temperature -30℃ up to +55℃ (with derating above +50℃)
Altitude up to 2000m
Storage temperature -40℃ up to +70℃ (with derating above +50℃)
Humidity (in operation, storage) 10% - 95% relative (non-condensing)
Installation Indoor and outdoor
Type of installation Floor mounted on foundation or skid
Height x Width x Depth 2100x870x925mm
Noise emission ＜65dBA*(@Continuous full-load operation)
Standard environmental conditions (20℃，1m distance)
Cooling method Air cooling
User interface 15.1” touch screen
Remote management Diagnostics, software updates
Network connections 4G/ETH
Branding Options for custom colours (powder coating), foil application and stickers
Cable Management System Suitable for 5m Cable lengths
Payment system Card readers for credit cards or EC card, QR-Code-reader
