Product>Controllers>Charging Motherboard (IMCU)

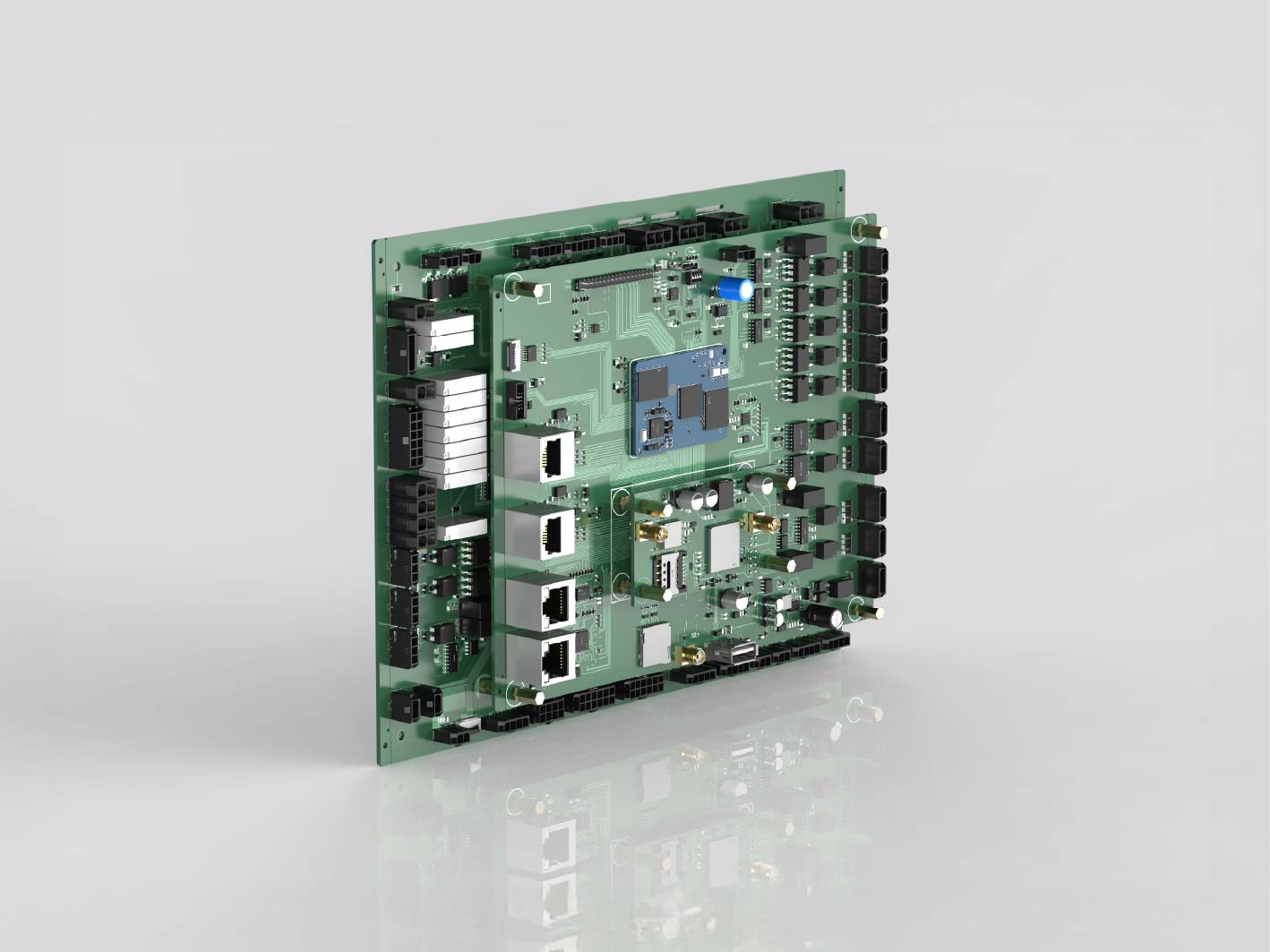

The Charging Motherboard serves as the intelligent core of the charging equipment.
It integrates the main controller, communication unit, and driver circuit, and is responsible for critical functions such as EV-Charger communication and precise charging control.
system specifications
Max output power 480 kW
Granularity of output power 40kW
Output DC voltage range 150Vdc - 1000Vdc
Maximum DC current per output 750A
Numbers of DC outputs 12
AC nominal voltage 400V±10%,3P+N+PE
AC rated input current 2*737A
Frequency 50Hz/60Hz
Power facctor ＞0.99(@full load)
Efficiency up to 96.5%(@full load)
THDi(Total harmonic distortion) ＜5%(@full load)
Operating temperature -30℃ up to +55℃ (with derating above +50℃)
Altitude up to 2000m
Storage temperature -40℃ up to +70℃ (with derating above +50℃)
Humidity (in operation, storage) 10% - 95% relative (non-condensing)
Installation Indoor and outdoor
Type of installation Floor mounted on foundation or skid
Height x Width x Depth 2240x1850x950mm
Weight up to 1800kg（including power modules）
Noise emission ＜65dBA*(@Continuous full-load operation)
*Standard environmental conditions (20℃，1m distance)
Cooling method Air cooling
Remote management Diagnostics, software updates
Branding Options for custom colours (powder coating), foil application and stickers
