Up to 400kW output
97% high efficiency power modules
150Vdc- 1000Vdc output range
Up to 2x CCS2 connectors
50kW granularity for dynamic load management
Three flexible current ratings: 250A, 400A, or 600A
Integrated cable management system
15.1” touch screen
IP 55 protection level

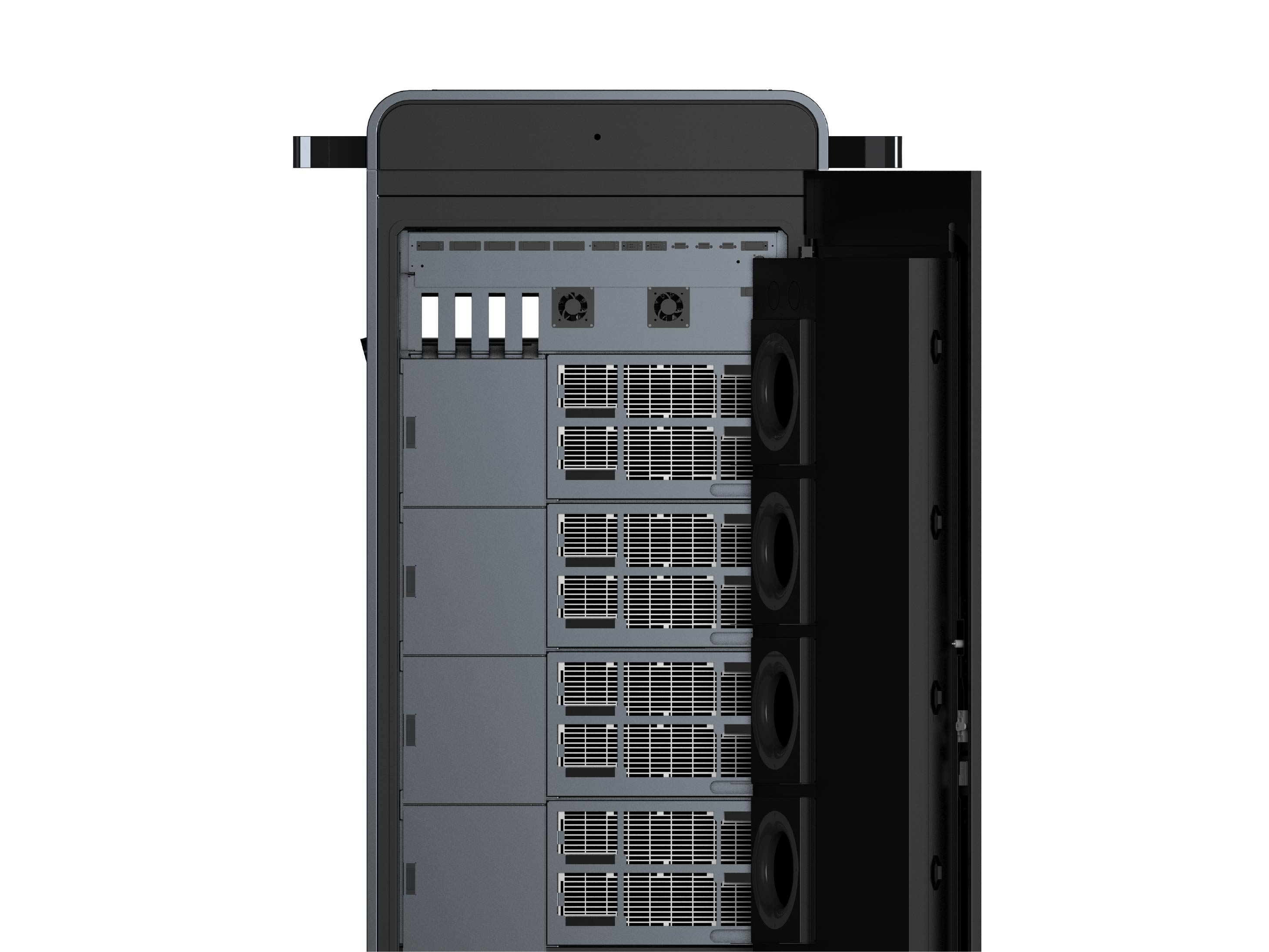

Modular architecture enables plug-and-play deployment, reducing installation complexity and enabling fast rollout. Faults are identified at component level for quick, targeted maintenance. Certified modules can be reused across sites, lowering lifecycle costs. The system supports seamless upgrades via simple module replacement, ensuring long-term scalability and future-ready performance.

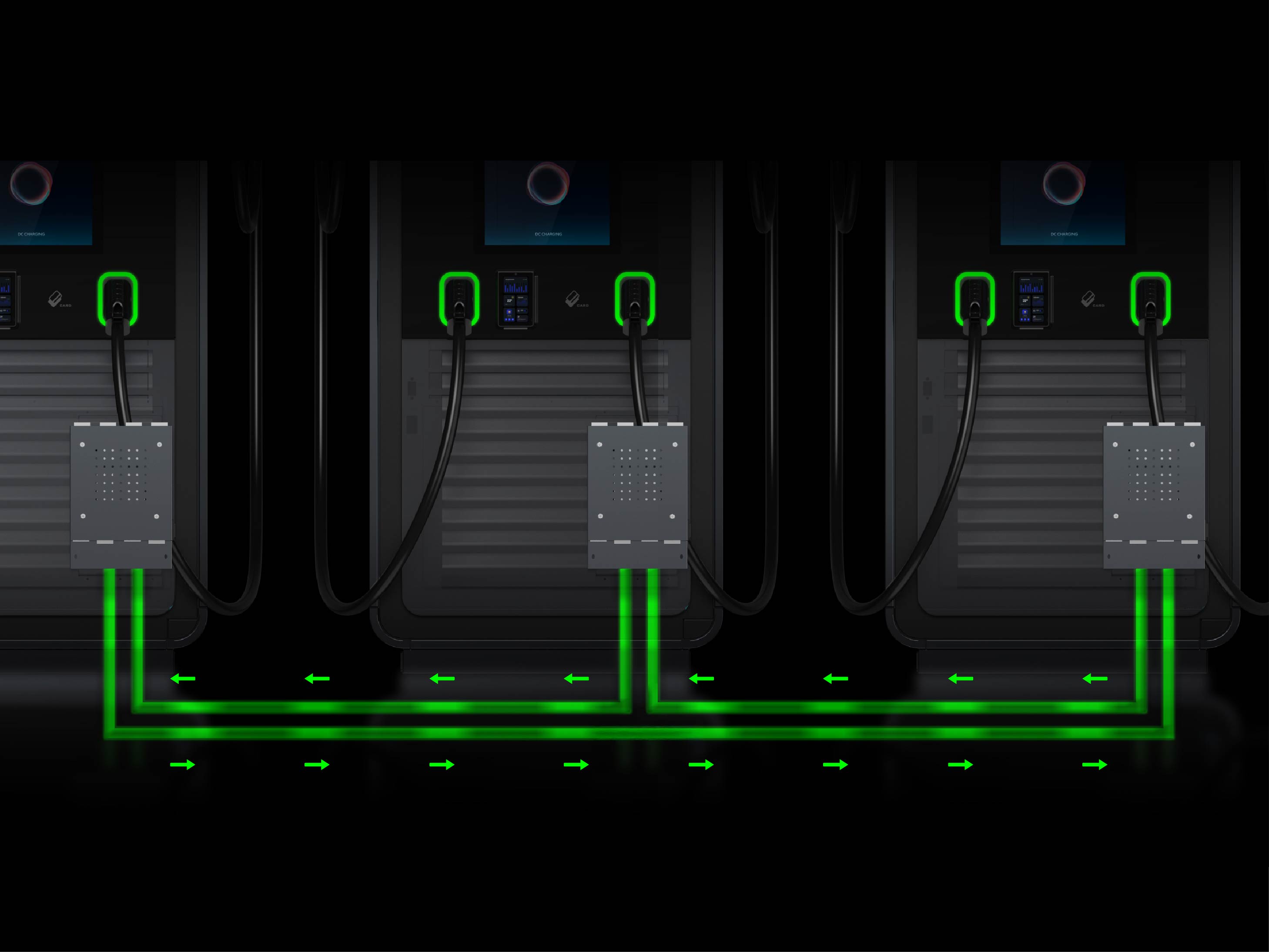

This system operates within a wide 150V–1000V voltage range, covering all vehicle from passenger EVs to heavy-duty trucks. With dynamic power allocation and seamless multi-unit parallel expansion up to 400A, it maximizes energy utilization, supports fast deployment, and allows seamless capacity expansion as charging demand grows.

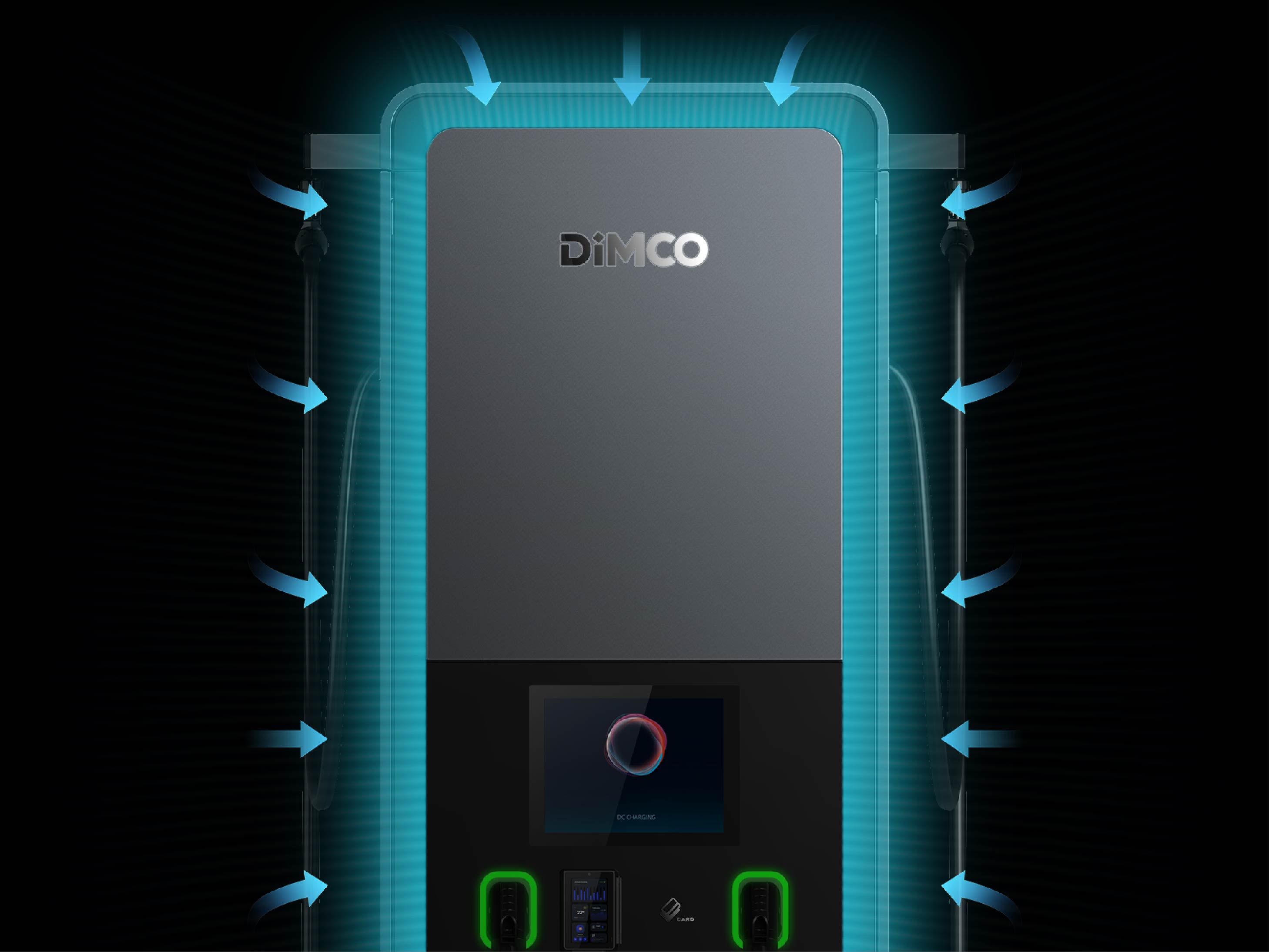

Designed to solve the common problem of heat and noise in high-power charging, this system uses a smarter way to move air instead of traditional cooling. Air intake is hidden and combined with sound-absorbing materials to reduce noise, helping the system cool efficiently while staying quiet.This makes the charging system work reliably under high power, while keeping noise low enough for use in cities and public spaces.

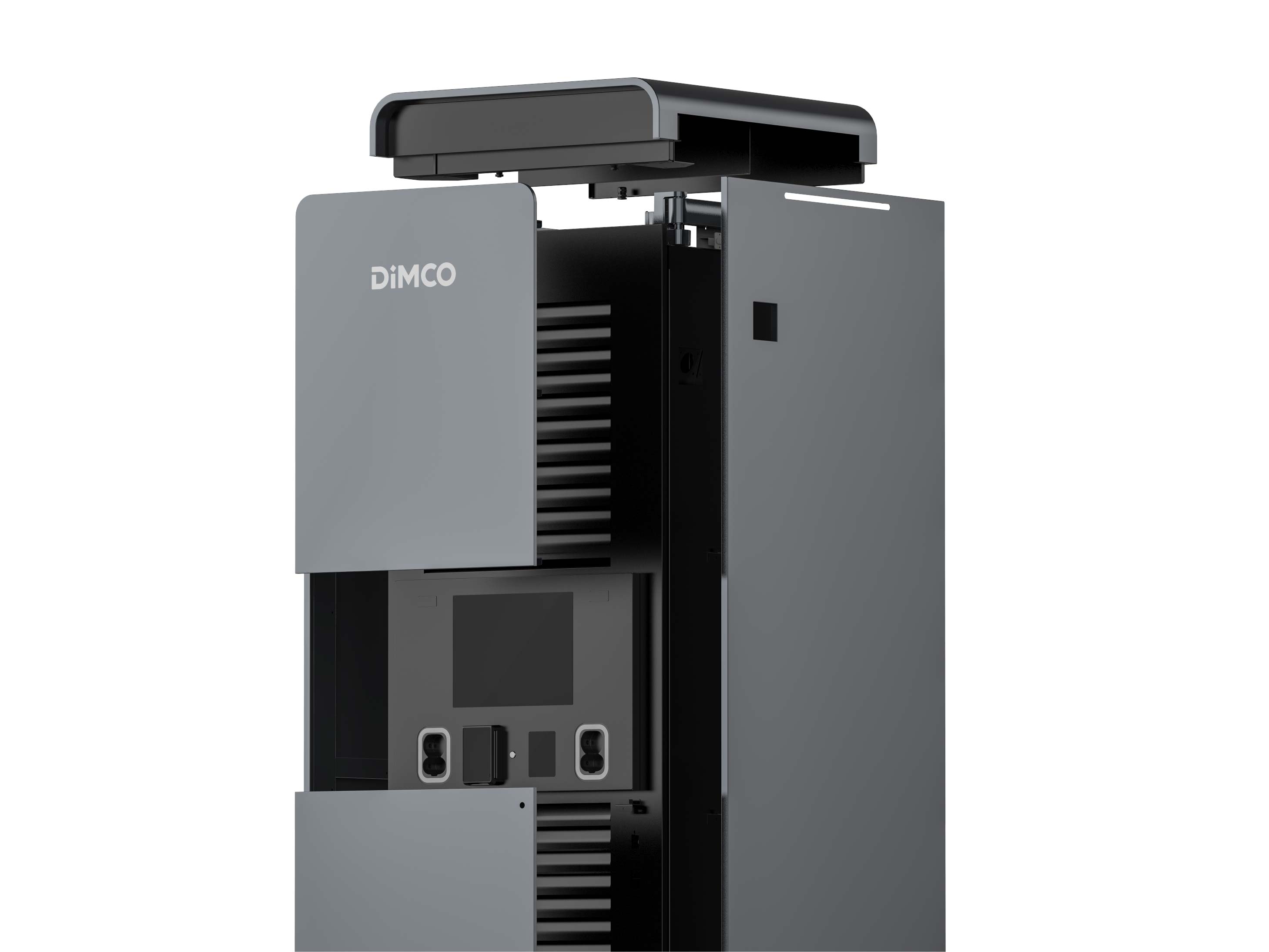

A smart design that keeps the charging system inside standard and reliable, while allowing the enclosure to be customized with different panels. This enables a distinct visual identity beyond simple logo or color changes found in traditional OEM products. It also makes the charging equipment fit better into urban environments, whether in streets, car parks, or public spaces more naturally, so it feels like part of the urban environment rather than industrial equipment.

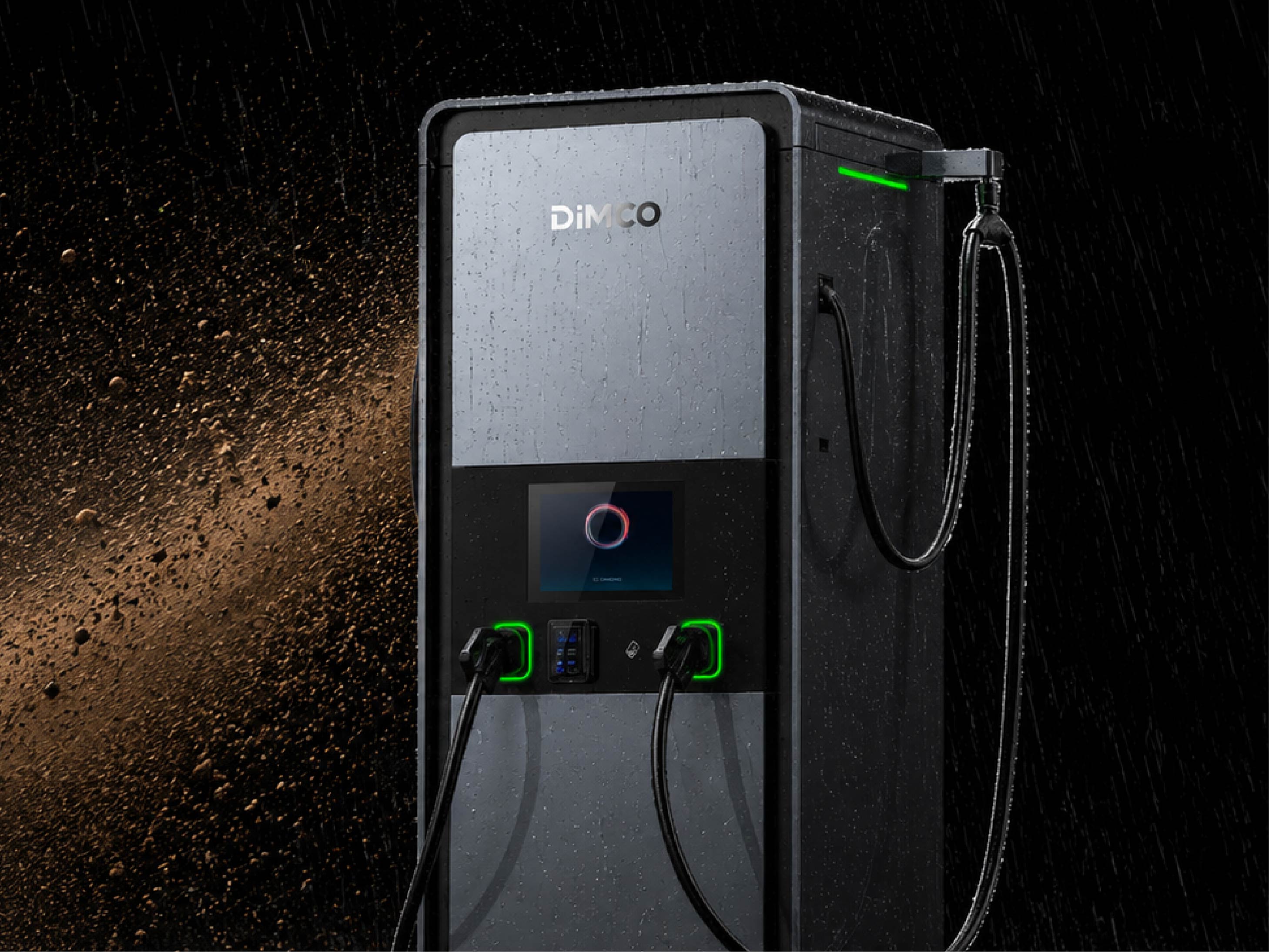

Designed for long-term reliability, the system combines comprehensive safety protection with robust environmental resistance. Built to withstand harsh weather, dust, humidity, and corrosive conditions, it helps reduce downtime, extend equipment lifespan, and ensure stable charging operations in demanding environments.
system specifications
Maximum output power 400kW
Charging interfaces 2*CCS2
Granularity of output power 50kW
Output DC voltage range 150Vdc - 1000Vdc
Maximum DC current 600A liquid cooled(prepared for 750A boost)
400A uncooled(prepared for 600A boost)
AC nominal voltage 400V±10%,3P+N+PE
AC rated input current 1*614A
Frequency 50Hz/60Hz
Power facctor ＞0.99(@full load)
Efficiency up to 96.5%(@full load)
Operating temperature -30℃ up to +55℃ (with derating above +50℃)
Altitude up to 2000m
Storage temperature -40℃ up to +70℃ (with derating above +50℃)
Humidity (in operation, storage) 10% - 95% relative (non-condensing)
Installation Indoor and outdoor
Type of installation Floor mounted on foundation or skid
Height x Width x Depth 2330x870x925mm
Weight up to 900kg（including power modules and cooling system）
Noise emission ＜65dBA*(@Continuous full-load operation)
*Standard environmental conditions (20℃，1m distance)"
Cooling method Air cooling
User interface 15.1” touch screen
Remote management Diagnostics, software updates
Network connections 4G/ETH
Branding Options for custom colours (powder coating), foil application and stickers
Cable Management System Suitable for 5m Cable lengths
Payment system Card readers for credit cards or EC card, QR-Code-reader
