Product>Controllers>Extension Block (I/O)

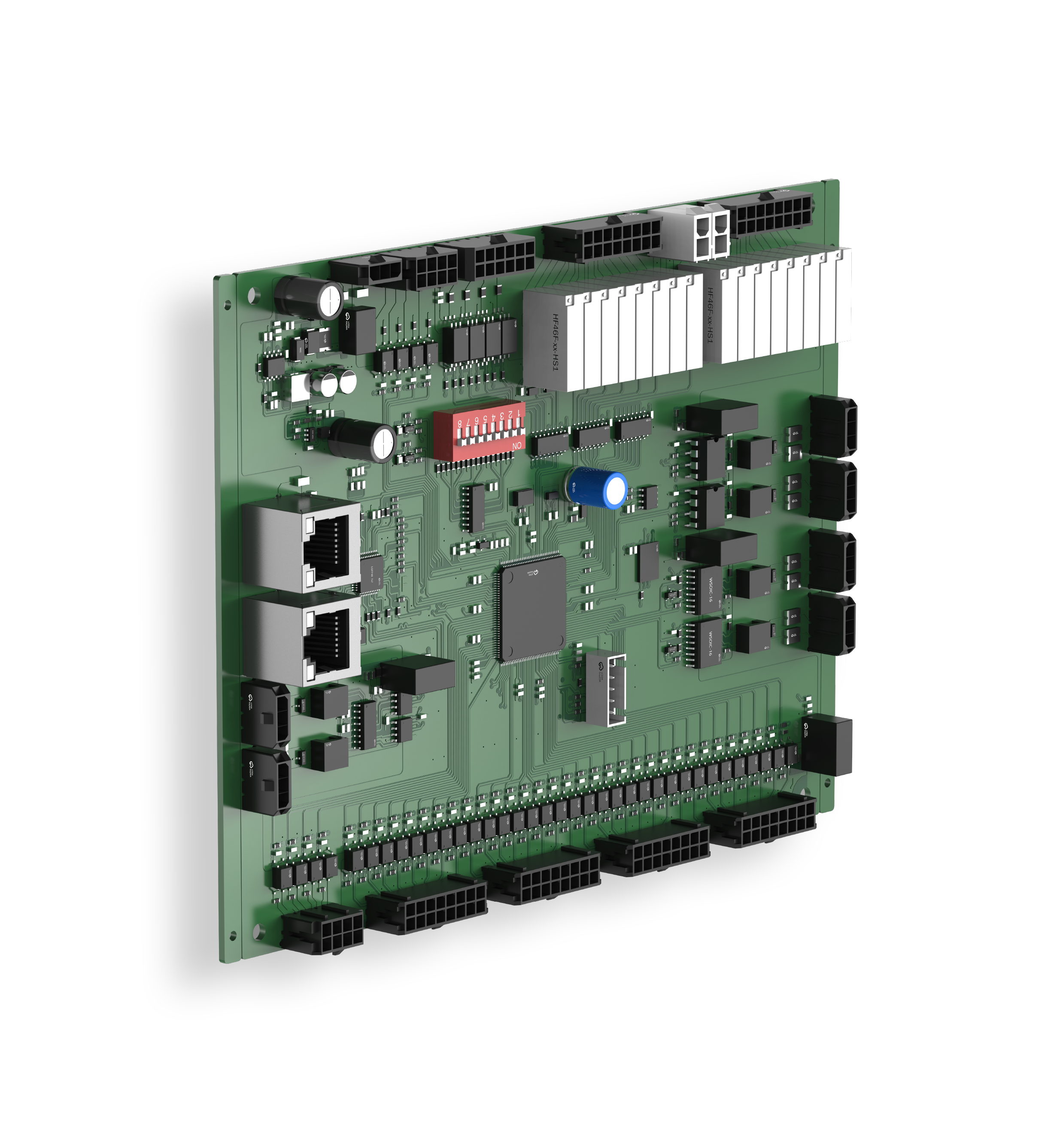

The I/O Extension Block enhances system flexibility by allowing the Motherboard to acquire data from multiple sensors / components and control a wider range of components. This enables compatibility with various communication protocols and peripherals.
system specifications
Max output power 480 kW
Granularity of output power 40kW
Output DC voltage range 150Vdc - 1000Vdc
Maximum DC current per output 750A
Numbers of DC outputs 12
AC nominal voltage 400V±10%,3P+N+PE
AC rated input current 2*737A
Frequency 50Hz/60Hz
Power facctor ＞0.99(@full load)
Efficiency up to 96.5%(@full load)
THDi(Total harmonic distortion) ＜5%(@full load)
Operating temperature -30℃ up to +55℃ (with derating above +50℃)
Altitude up to 2000m
Storage temperature -40℃ up to +70℃ (with derating above +50℃)
Humidity (in operation, storage) 10% - 95% relative (non-condensing)
Installation Indoor and outdoor
Type of installation Floor mounted on foundation or skid
Height x Width x Depth 2240x1850x950mm
Weight up to 1800kg（including power modules）
Noise emission ＜65dBA*(@Continuous full-load operation)
*Standard environmental conditions (20℃，1m distance)
Cooling method Air cooling
Remote management Diagnostics, software updates
Branding Options for custom colours (powder coating), foil application and stickers
